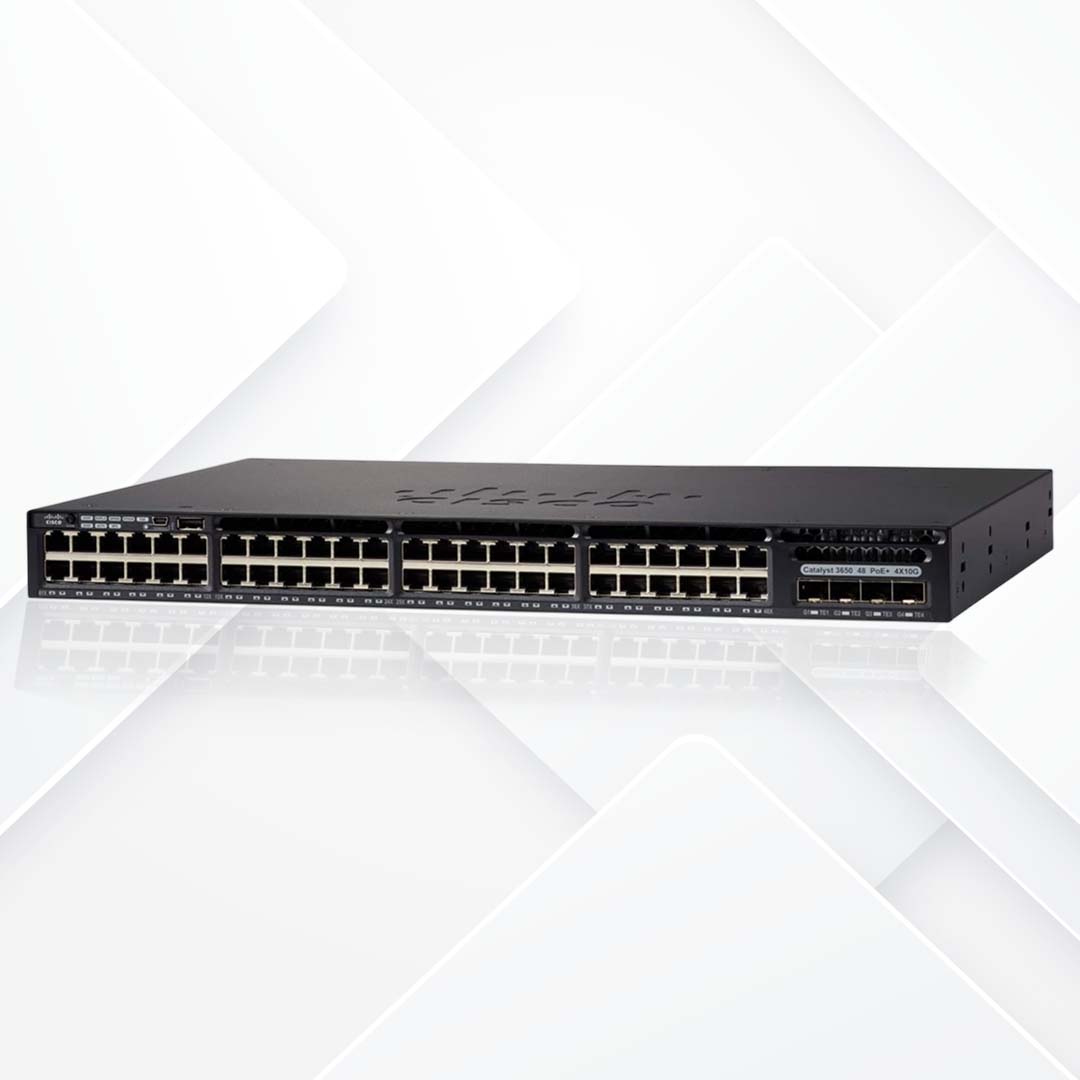

Cisco Catalyst 3650 G

Description

General Specifications:

• Models: Various models within the 3650 series, including 24-port and 48-port configurations.
• Switching Capacity: Up to 440 Gbps (depending on the model).
• Forwarding Performance: Up to 130 Mpps (million packets per second) (depending on the model).
• Stacking: Supports Cisco StackWise-480 technology for stacking up to 9 switches with a total bandwidth of 480 Gbps.
• Form Factor: 1U rack-mountable.

Port Specifications:

• Port Types: 10/100/1000 Mbps (Gigabit Ethernet), 1G SFP, 10G SFP+.
• Power over Ethernet (PoE): Available on models with PoE or PoE+ capabilities, providing up to 30W per port for PoE+ and 15.4W per port for standard PoE.

Performance and Features:

• Layer 3 Routing: Supports static routing, RIP, EIGRP, OSPF, and more.
• Quality of Service (QoS): Advanced QoS features for traffic prioritization and network performance management.
• Security: Includes features like 802.1X, DHCP Snooping, Dynamic ARP Inspection, and IP Source Guard.
• Management: Supports Cisco IOS Software for management and configuration, and integration with Cisco DNA (Digital Network Architecture) for advanced network management and automation.

Software:

• Operating System: Cisco IOS XE.
• Licensing: Features vary by license level (Essentials, Advantage, or Premier).

Power:

• Power Supply: Redundant power supply options available for higher availability.
• Power Consumption: Varies by model and configuration.

Environmental and Physical:

• Temperature Range: Typically operational between 32°F to 104°F (0°C to 40°C).
• Humidity: 10% to 90% non-condensing
