Description
Upgrade Your Video Experience

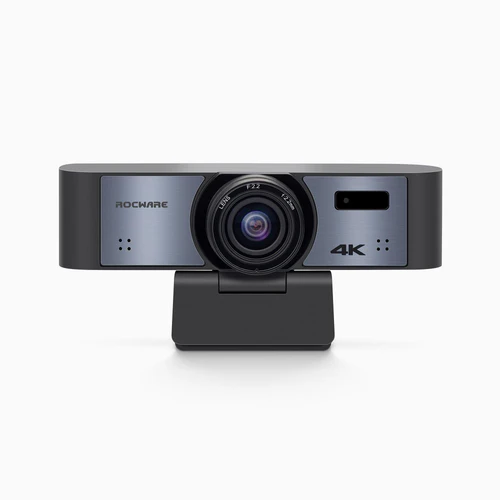

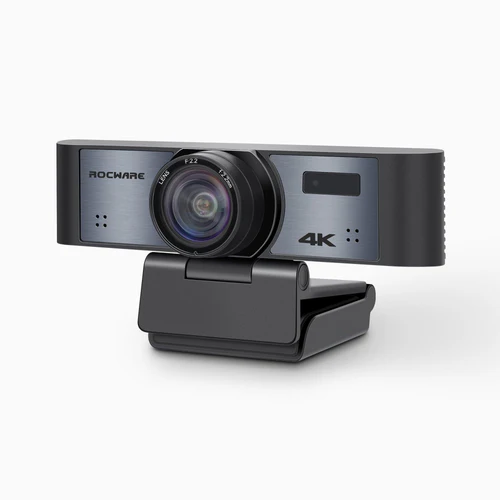

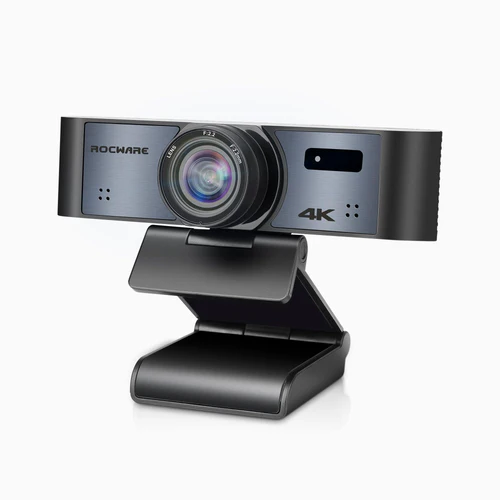

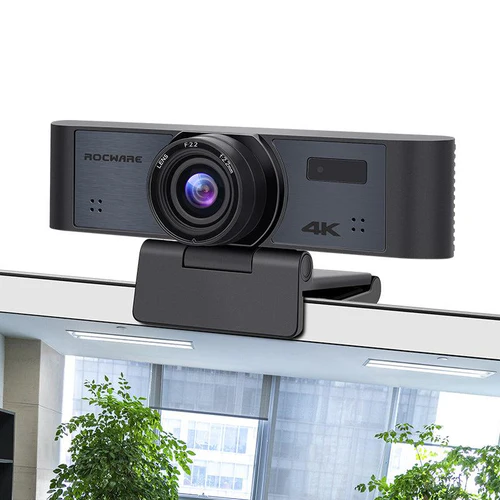

RC16 is a high-performance USB camera designed specifically for small to medium-sized meeting rooms and personal office environments. It is equipped with a next-generation UHD CMOS image sensor, providing 4K ultra-high-definition resolution images. In addition, it features Auto framing, Humanoid tracking algorithms, and audio processing capabilities, delivering an exceptional conference audiovisual experience for users.
4K Ultra-High Definition & 110° Wide Angle
It utilizes a 1/2.7-inch UHD CMOS sensor with an effective pixel count of 8.29 million. It supports a maximum 4K@30fps image encoding output, delivering higher picture resolution and rich details.
Equipped with a 110° ultra-wide-angle lens, it captures a wider range and minimizes image distortion. With Auto Framing technology, it
can automatically detect people within the field of view and adjust the picture angle accordingly.
Auto Framing with AI Technology
The camera integrates AI algorithms and facial recognition technology, automatically identifying changes in seating arrangement in the meeting room and adjusting the camera’s field of view for optimal framing. It can also track new participants as they enter the frame.
Humanoid Tracking with AI Technology
With the built-in NNE hardware unit and deep learning technology, it achieves smooth person tracking by extracting target features, regardless of the direction the person’s face is facing.
6-meter Clear Audio Pickup
Featuring a built-in beamforming microphone array and unique noise suppression and automatic gain algorithms, it ensures clear audio pickup within a range of 6 meters, enhancing speech clarity.

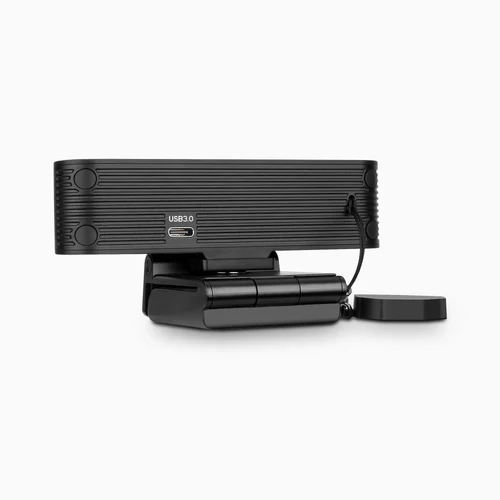

Full-Featured USB 3.0, One-Click Convenience
Supporting a full-featured USB 3.0 interface, it enables integrated power supply, video, and audio transmission. It can also support simultaneous input from two USB video sources (optional) and one audio source.
With the exquisite infrared remote control and exclusive software, users can easily activate features such as automatic framing and person
tracking with a single click. It also allows convenient settings for presets, electronic pan-tilt-zoom (ePTZ), image parameters, providing a
user-friendly operating experience.
Product Details
Camera
- Sensor:1/2.7”, CMOS, Effective Pixel
- Scanning Mode:Progressive
- Lens Mount:M12
- Lens Focus: f=2.2mm, 110° FOV
- Minimal Illumination:0.5 Lux @ (F1.8, AGC ON)
- Shutter:1/30s ~ 1/10000s
- White Balance:Auto, Indoor, Outdoor, One Push, Manual
- Camera bracket:Standard damping rotating bracket
- Digital Noise Reduction:2D,3D digital noise reduction
- Backlight Compensation:Support
Input/Output Interface
- USB Interface:1xUSB 3.0，Type-C
- Infrared remote control:Support
USB Features
- Operate System:Windows® 7 (1080p or below), Windows 8.1, Windows 10 or higher ;macOS™ 10.10 or higher;Google™ Chromebook™ Version 29.0.1547.70 or higherLinux (need support UVC)
- HarHardware Requirement:2.4 GHz Intel® Core 2 Duo processor or higher;2 GB RAM or more;USB 2.0 interface（4K requires USB 3.0）
- Color System / Compression:H.264 / MJPEG /YUY2
- Video Format:4k@30fps/25fps, 1080p@30fps/25fps, 720p@30fps/25fps, 960x540p@30fps/25fps,
- USB Video Communication Protocol:UVC 1.1
- UVC PTZ control:Support (EPTZ)
General specification
- Input Voltage:5V (USB power supply)
- Input Current:600mA(MAX)
- Operate Temperature:0°C ~ 40°C
- Storage Temperature:-40°C ~ 60°C
- Power consumption:3.0W(MAX)
- Size:118mm x37.2mm x 30.8mm（Without stand）
- Net Weight:
- MTBF:30000h
